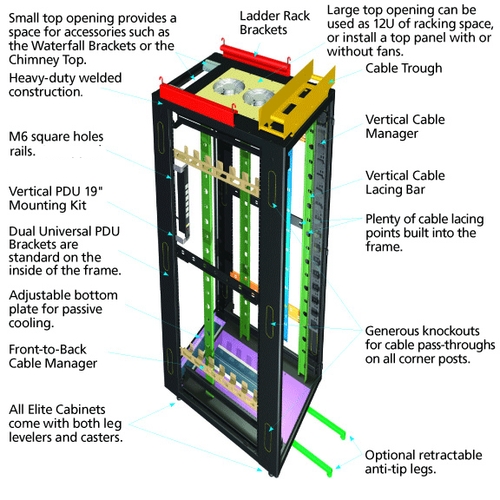

The Elite Cabinet family from Black Box delivers more features and options than any other Black Box cabinet — more door and panel choices, more cable management, features like high-flow mesh on all mesh doors, and dual universal PDU mounting brackets.
Plus Elite Cabinets feature heavy-duty, welded steel construction, designed to last many years without any trouble. The cabinets arrive fully assembled and ready to populate.
Elite Cabinets are specifically designed to be adaptable to your exact needs. Whether you need a high-airflow cabinet for your data centre or a small, secure cabinet for an office, the Elite Cabinet family has exactly the cabinet for you.
Select a pre-configured cabinet or have one customized to your specifications and shipped in only two or three business days . Choose from a wide range of sizes to suit all your data and server cabinet needs. Our Tech Support experts will help you specify the cabinet you need — FREE of charge.
More cable management.
Cable management is easy — extensive cable knock-outs on the top and sides provide convenient cable entry. The cabinets feature multiple lace-down points throughout. For even more cable management, add our Horizontal and Vertical Lacing Bars or Front-to-Back Cable Managers.
More versatility.
Because Elite Cabinets come with a wide range of choices in frame sizes, doors, and top and side panels, they adapt to nearly any application.
Rails with M6 square holes are standard in all our Elite cabinets offered in Europe. They enable you to use vendor-supplied server rails that latch into the square holes to support servers, or to convert the square hole to a threaded M6 hole by using cage nuts.

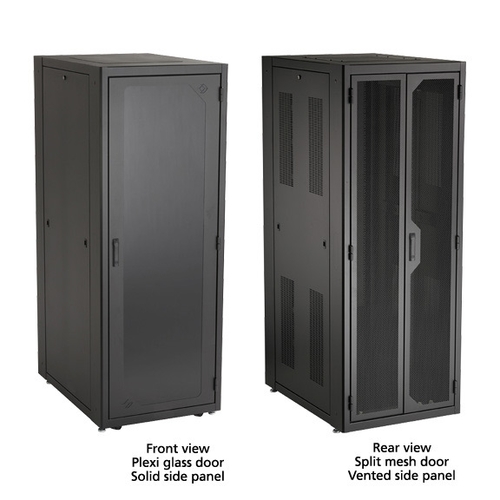

Cabinet doors are available in solid, high-flow mesh, split high-flow mesh, smoked PLEXIGLAS® , or solid with fans. You also can choose a cabinet with no doors. Side panels can be solid or vented, or you can leave them off. All Elite Cabinets have our high-flow mesh, which improves airflow approximately 10% over typical cabinets.
Cabinet tops are customizable, too — choose a top panel with or without fans, or use the top opening to rack-mount up to 12U of shallow components such as patch panels or power strips. For more information, call our FREE Tech Support.
For data centre installations, Elite Cabinets are Ladder Rack ready with the addition of the optional Ladder Rack Bracket.
Fan Units — Power: 230-VAC ;
1-Fan (25-cm): 930 m³/h;
2-Fan (25-cm): 1860 m³/h;
3-Fan (10-cm): 380 m³/h;
6-Fan (10-cm): 760 m³/h
Height: 200cm
All these 42U Elite cabinet include:
- Fully-assembled cabinet,
- (4) M6 rails with square holes,
- Extensive cable knock-outs on the top, sides, and bottom,
- Multiple lace-down points throughout the cabinet,
- (2) Solid side panels,
- Open bottom for passive cooling,
- Front & rear doors (as listed), with handles & key locks,
- Mesh Top Panel,
- Levelling legs and casters.
